fischertechnik Bending Machine 24V DC

fischertechnik Bending Machine 24V DC

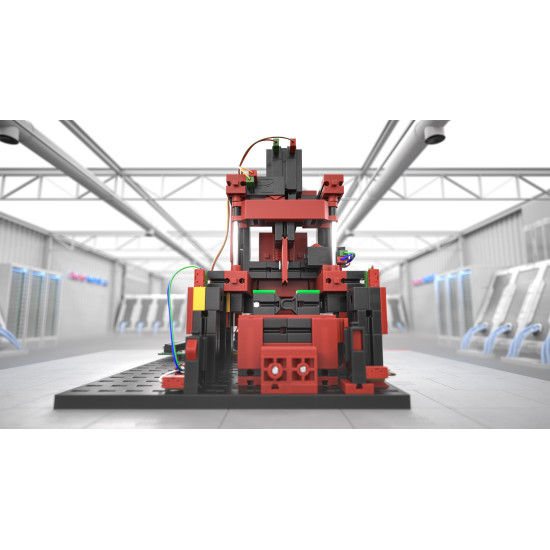

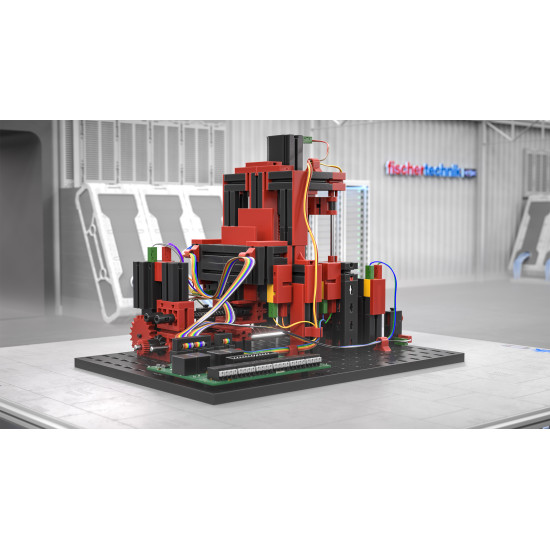

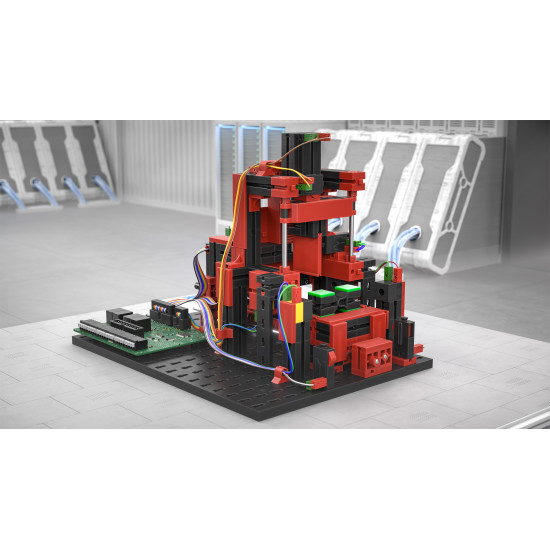

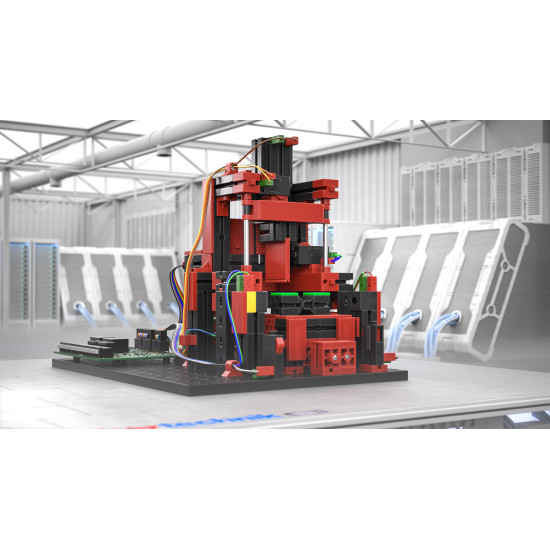

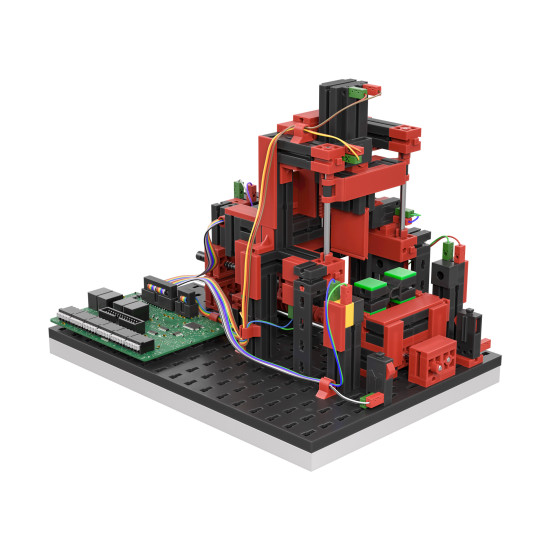

The fischertechnik Bending Machine 24V simulates the transportation and bending of workpieces. The model can be used in either semi-automatic or automatic mode. In semi-automatic mode, the unbent workpieces are manually inserted into the transport carriage. In automatic mode, the transport carriage positions itself automatically under a magazine that provides the workpieces. The loaded carriage then transports the workpiece to the bending machine, where it is bent. The transport carriage then takes the bent workpiece to the removal point.

The Bending Machine 24V includes a comprehensive PLC course that uses the physical model to create a lasting learning experience for PLC programming. At the end of the course, the learner will be able to wire the 24V bending machine independently and program it in function block diagram or structured text. In a safe, yet industry-real environment, they will build up know-how that can be used for real machine programming and commissioning. The didactic concept covers all the essential steps from wiring using a circuit diagram and creating a flowchart to programming (FBD or SCL) and commissioning the model. Thanks to the action-oriented approach of this training model, participants not only develop a deep understanding of PLC programming, but also the ability to master complex control tasks independently. The model promotes hands-on learning, creativity and problem-solving skills, optimally preparing participants for the demands of industrial practice.

Control system
24V model prepared for control with a PLC
PLC requirements: 8 digital inputs and 4 digital outputs 24V
PLC programming course designed for structured text and function chart

Top Features
Bending machine with magazine and transport carriage
Ideal training, simulation and demonstration model for vocational training and further education
Fully assembled 24V training model, mounted on a sturdy wooden plate
Includes comprehensive PLC course
ATTENTION: A 24V PLC control system is essential for operation

Content
2x Mini motor
5x Push button
3x Phototransistor
3x Light barrier LED

This model is also available as a starter set with Siemens S7-1200. This PLC is also suitable for other training models. The PLC in this starter set is pre-wired for use with both the Bending Machine 24V (571911) and the Production Line 24V (571910).
