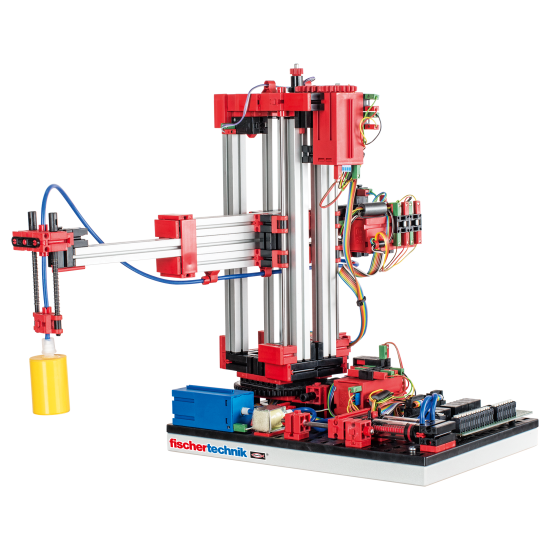

3-axis robot with vacuum gripper works quickly and precisely,
positioning workpieces in three-dimensional space. Working range: x-axis
270°, y-axis (forwards/back) 140 mm, z-axis (up/down) 120 mm.
Connection
to PLC control: The model has a circuit board with relays for reversing
the direction of rotation of the motors. All inputs and outputs can be
connected to a jack plug (26-pin, 2.54 mm pitch) or to series terminals
with push-in terminals.
Top Features
Ideal training, simulation and demonstration model for training and industrial automation
Already completed, stable training model
Mounted on a solid wooden plate, model packaged in a sturdy cardboard box
Optionally available in the 9V standard voltage as well as in the worldwide 24V industrial standard
CAUTION: absolutely necessary for operation is a PLC control 24V
Content
3x Encoder motor (DC motor with magnetic encoder)
3x Push button (limit switch)
Vacuum exhauster
Compressor
Solenoid valve
Advantages
Current consumption: I = ca. 0,9A
Inputs digital: 3
Fast counting inputs: 3 oder 6 (with direction detection)
